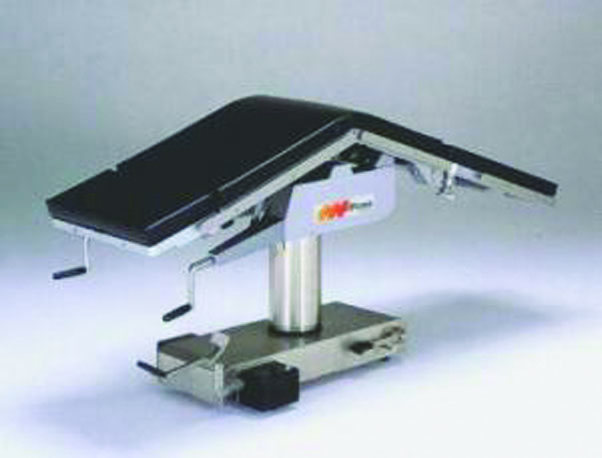

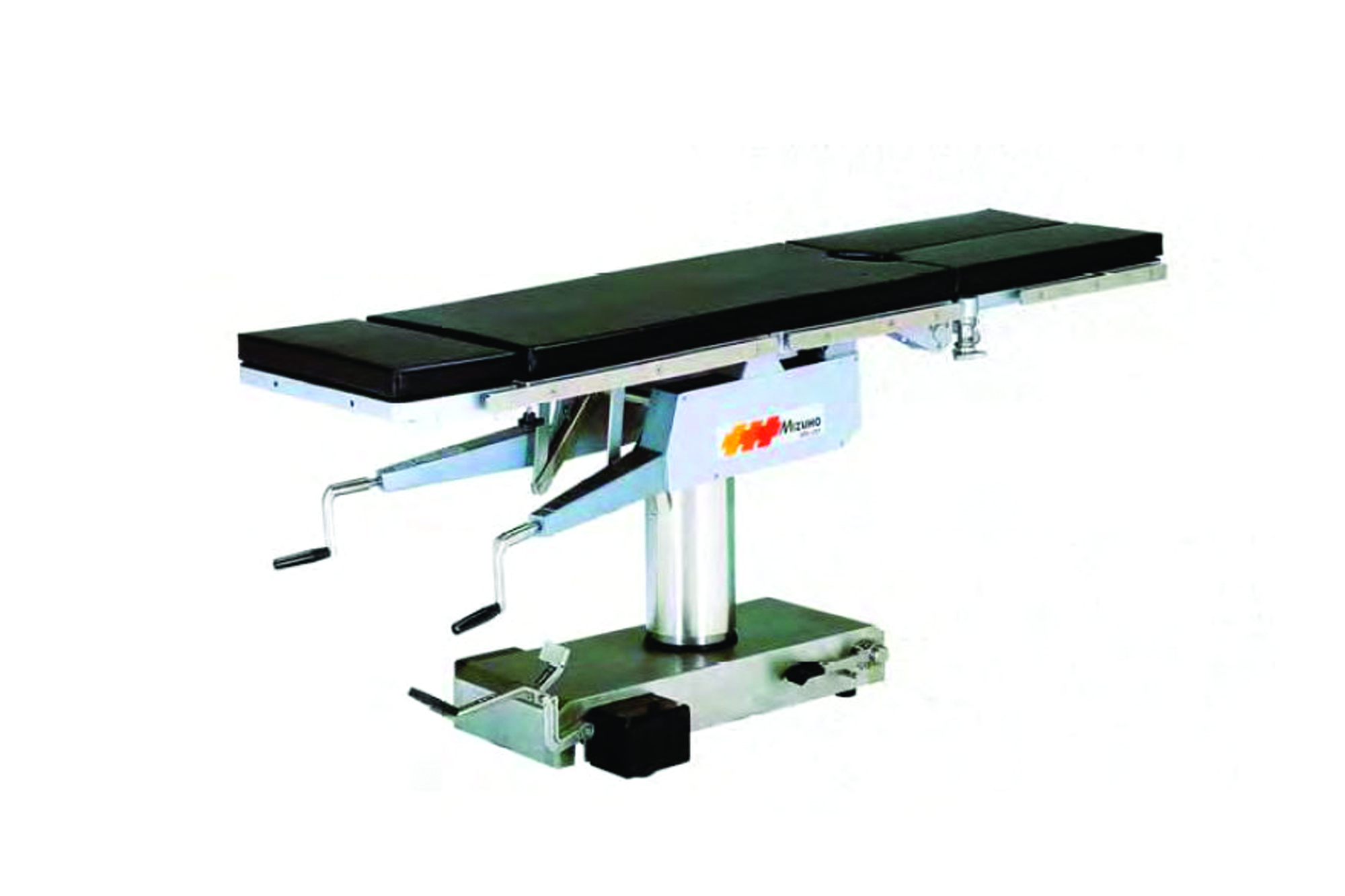

This operating table is a product of Mizuho’s clear-cut design concept to provide the users with an operating table possessing all basic functions needed for general surgery plus the radiographic capability with simple construction for minimized trouble and ease of maintenance and above all an outstanding cost performance.
Neatly encased head-end table control system along with the smooth and powerful foot-operated oil pump provides good maneuverability of the table as well as ease of maintenance.
Sturdily structured gear-driven tabletop control system ensures steady articulation of the tabletop for a variety of patient posturing free of wobbling and rattling and endures long service with minimized trouble.
Tabletop is designed to be rotatable by 180 degrees each clockwise or counter clockwise.
Availability of various accessories gives the table added versatility.
Heavy-duty caster allows easy and smooth motion of the table in the operating room.
Table top length/Table top width 1930mm/500mm
Height 770mm-1010mm
Lateral tilt(right/left) 20°/20°
Trendelenburg(/reverse) 25°/25°
Back up/down 90°/15°
Leg up/down 0°/90°
Top slide head/foot -
Top rotation(right/left) 180°/180°
