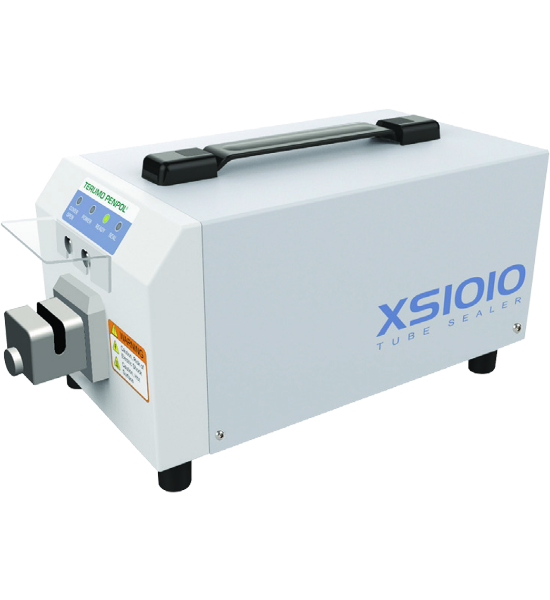

XS1010 TUBE SEALER

General Lab Equipment Tube Seale
Product Overview

1. Tube Sealer Electrode

  • Easily accessible for cleaning and disinfecting

2. Splash Guard

  • Protects the phlebotomist

3. Indicator Lights

  • Cover open (yellow), Power (green),  Ready (green), Seal (red)
  • Membrane light-emitting diodes (LEDs)
Features & Capabilities

No features specified.

Technical Specifications

Power supply input frequency                100 V AC to 240 V AC 50 Hz/60 Hz
Safety standard                                              IEC 61010-1:2010
Classification                                                  Protection against electric shock
Operation mode                                            Once it is turned on, the device is ready to use
RF output power (effective)                     20 W
Tube detection                                              Automatic
RF output frequency                                   40.68 Mhz
Tube specification                                       Polyvinyl chloride (PVC) tubing up to 6 mm (outer diameter)
Fuse                                                                    250 V, 3.15 A, type T, slow blow
